Lynton and Lynmouth Cliff Railway (Devon)

4
(1)
View of Lynmouth Bay from the upper station of the Lynton & Lynmouth Cliff Railway

View of Lynmouth Bay from the upper station of the Lynton & Lynmouth Cliff Railway

The Lynton and Lynmouth Cliff Railway is not a railway in the classical sense, but actually an inclined elevator in the form of a water ballast railway. It connects the two towns of Lynton and Lynmouth in the north of Exmoor in the southern English county of Devon. Lynmouth is the port town on the Bristol Channel coast and its sister town of Lynton is about 150 metres above the cliffs. In order to create a connection here, an inclined elevator was built in 1890, in which one car goes up and one car goes down. Both carriages are connected by a mountain-side cable. The tank of the car going into the valley is filled with up to 3.2 cubic meters of water from the West Lyn River, more than 1.6 kilometres away, and thus it is heavy enough to pull up the uphill car. Arriving at the bottom, so much water is drained from the arriving car that it is lighter than the car standing at the top of the mountain with a full water tank and so the journey begins in the opposite direction. Both cars have a brake that can regulate the speed. In the middle of the 263-metre-long route there is a passing bay where increased separation of the tracks allows the car to pass. On a track gauge of 1,143 meters (3 feet 9 inches), a gradient of 57% is overcome. The line is still largely in its original condition. The last time the rails were replaced was in 2006. The whole system is now a listed building, but it is still used for passenger transport between the two places. Up to 40 people can be transported per car and can be driven at short intervals, as required.

Lynton and Lynmouth Cliff Railway homepage with operating hours and fares

When you are in Lynton don’t miss a visit to the cute “Lynton & Barnstaple Railway“!

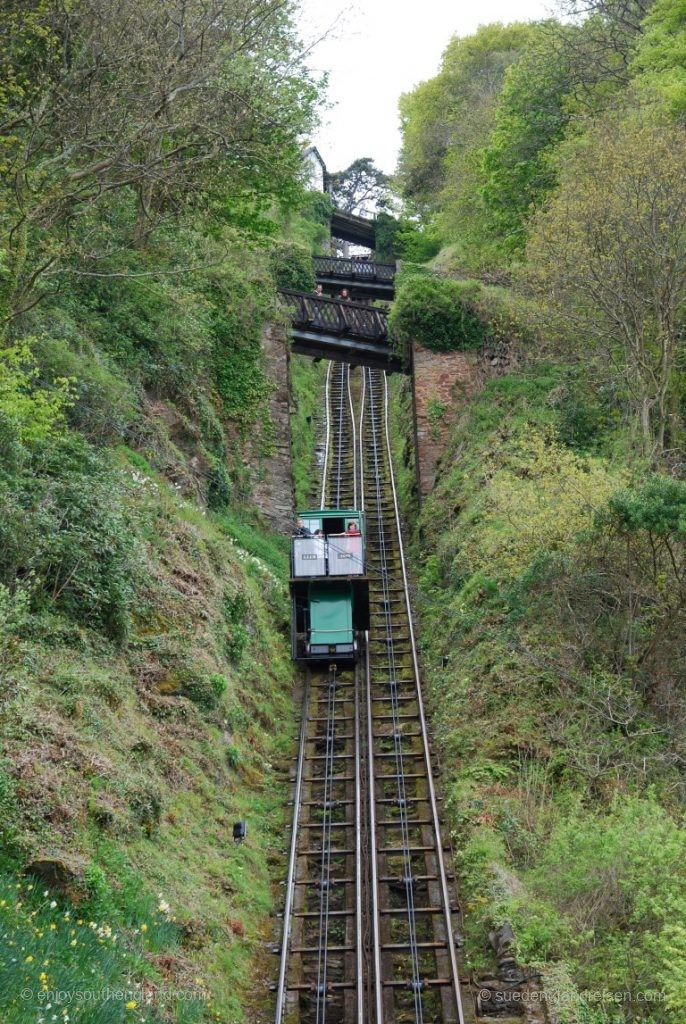

It climbs steeply in the middle of the rocks, the Lynton & Lynmouth Cliff Railway

It climbs steeply in the middle of the rocks, the Lynton & Lynmouth Cliff Railway

Access to the Lynton & Lynmouth Cliff Railway at the upper terminus in Lynton

Access to the Lynton & Lynmouth Cliff Railway at the upper terminus in Lynton

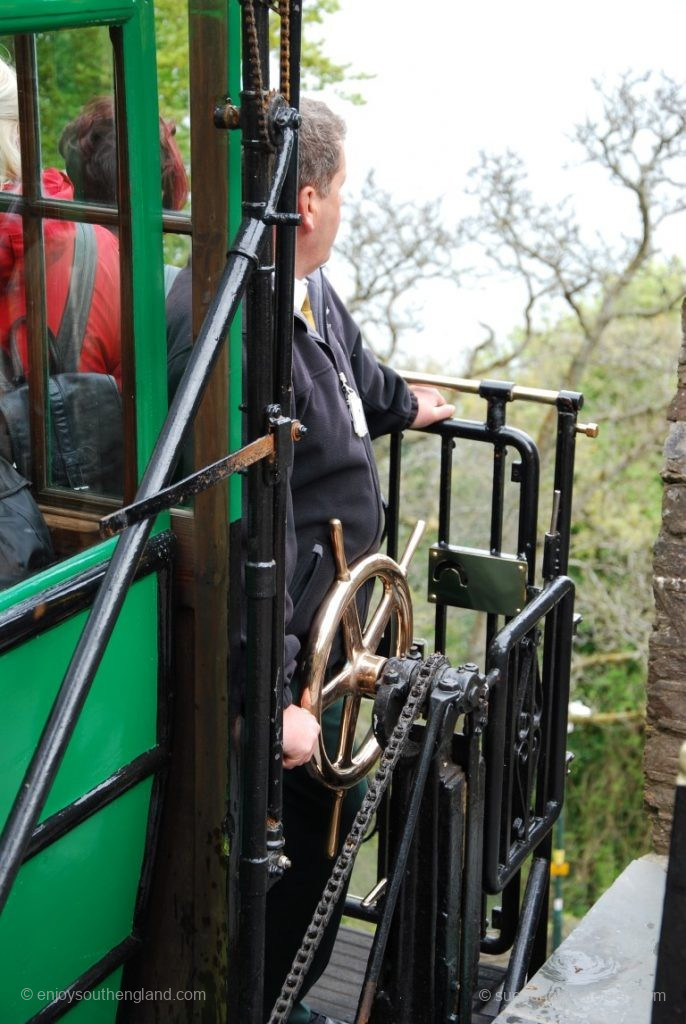

The most important man on the Lynton & Lynmouth Cliff Railway carriage - the brakeman

The most important man on the Lynton & Lynmouth Cliff Railway carriage – the brakeman

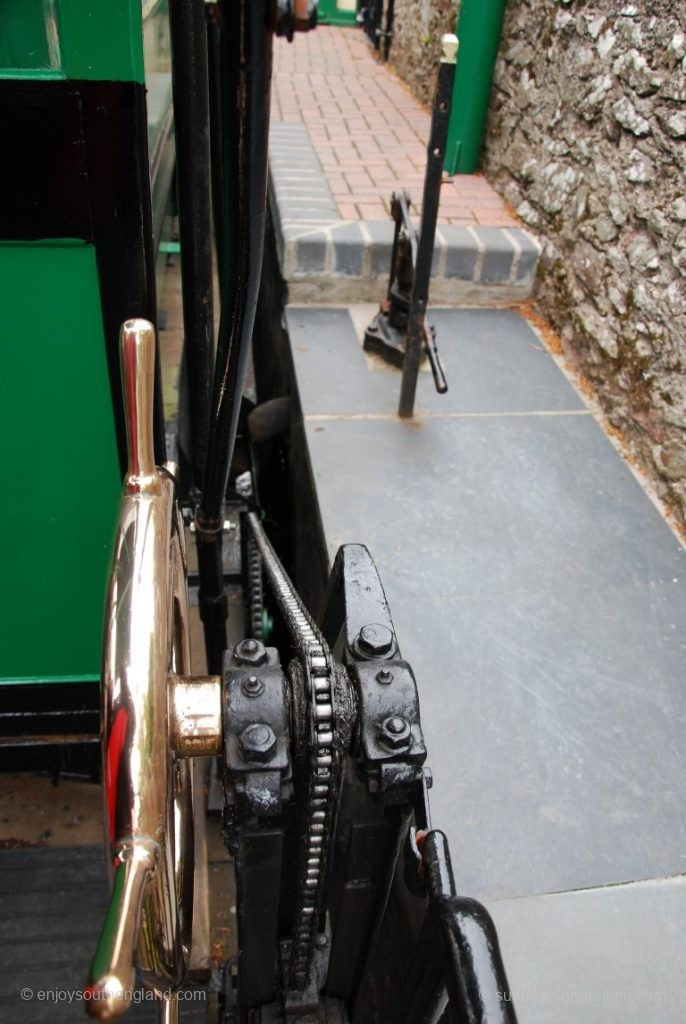

Classic technology is perfectly sufficient to operate the Lynton & Lynmouth Cliff Railway.

Classic technology is perfectly sufficient to operate the Lynton & Lynmouth Cliff Railway.

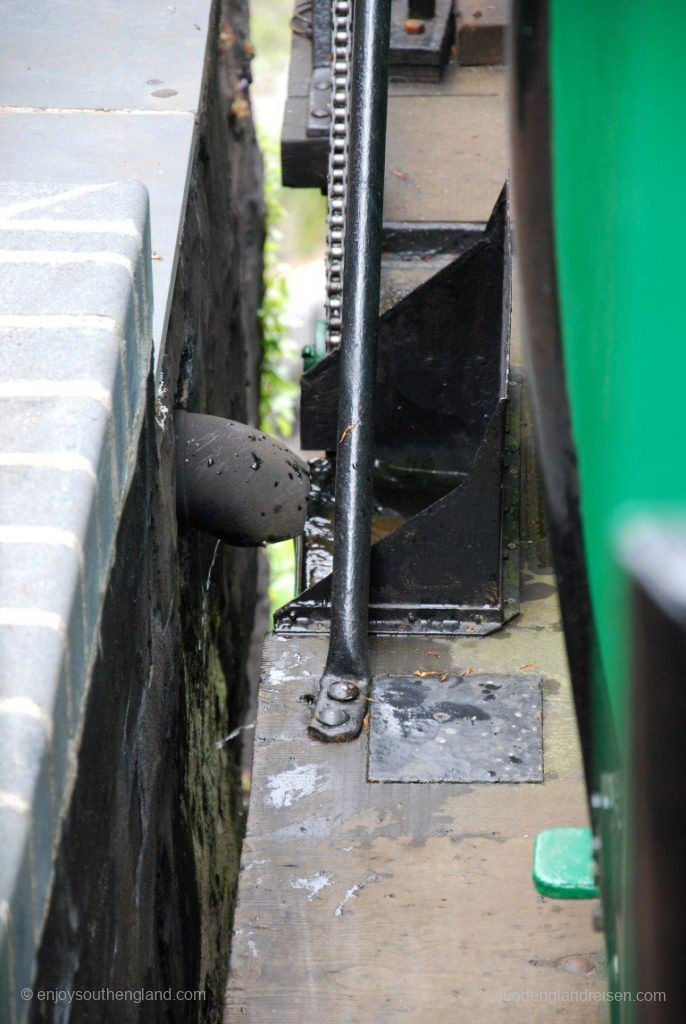

The Lynton & Lynmouth Cliff Railway's water filling system, so that the wagons going down the valley are heavy enough to pull up the fully loaded oncoming wagon up.

The Lynton & Lynmouth Cliff Railway’s water filling system, so that the wagons going down the valley are heavy enough to pull the fully loaded oncoming wagon up.

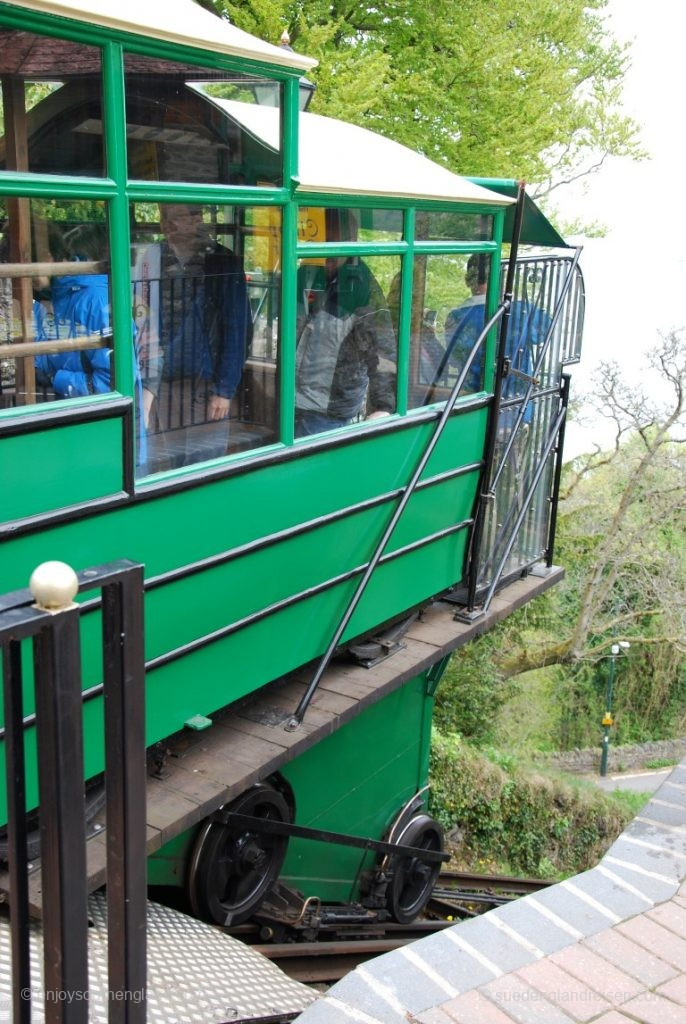

Here we go - the Lynton & Lynmouth Cliff Railway starts its journey.

Here we go – the Lynton & Lynmouth Cliff Railway starts its journey.

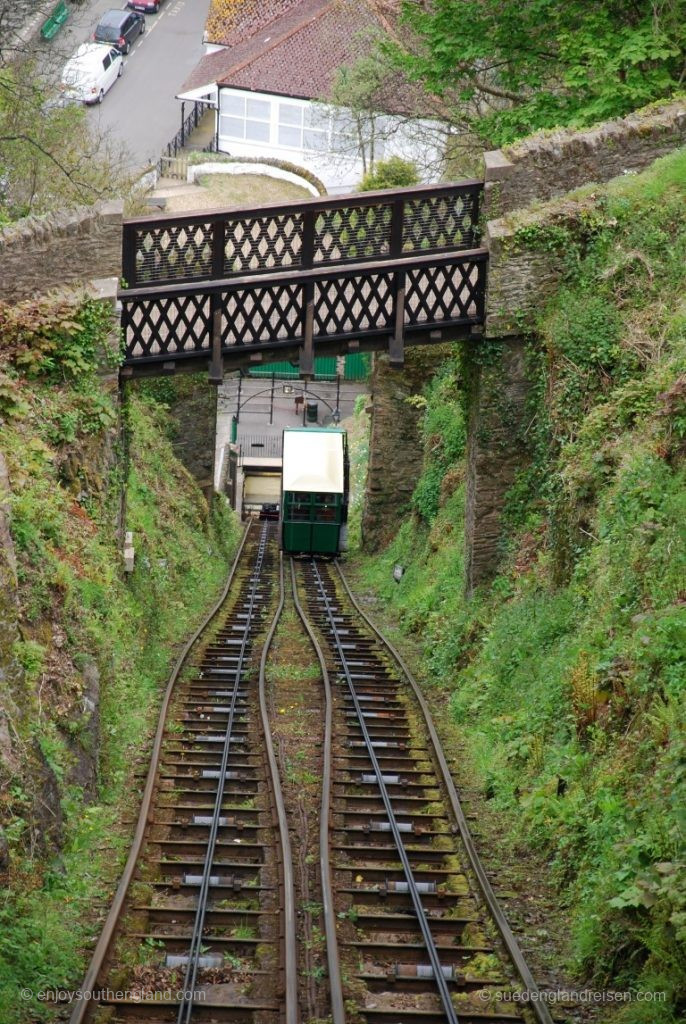

The siding and the lower train of the Lynton & Lynmouth Cliff Railway

The siding and the lower train of the Lynton & Lynmouth Cliff Railway

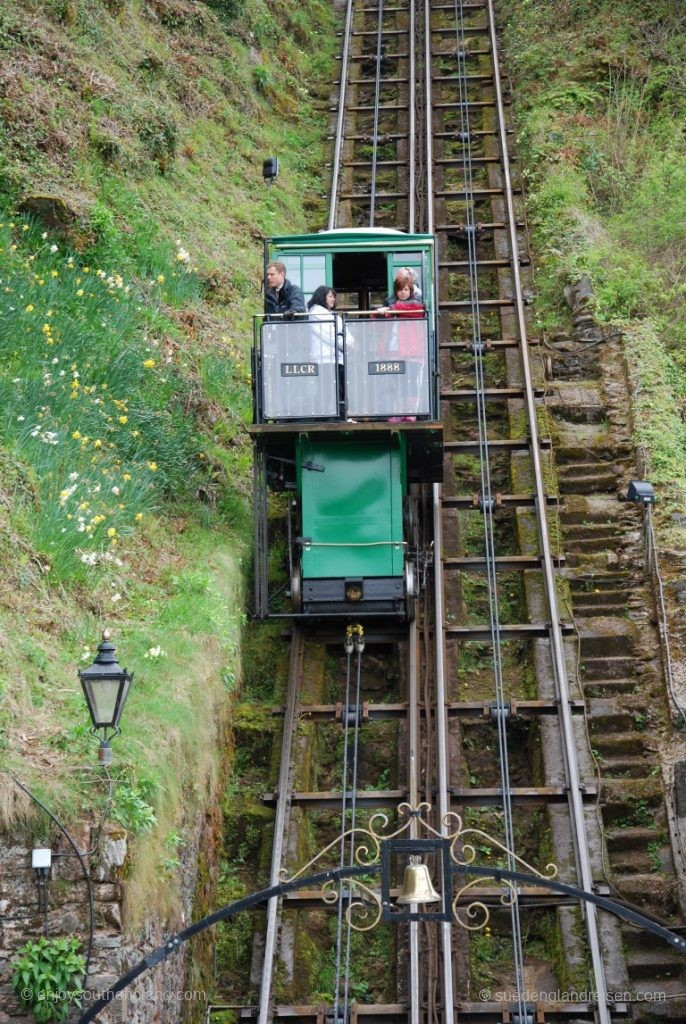

Seconds before reaching the Lynton & Lynmouth Cliff Railway lower station

Seconds before reaching the Lynton & Lynmouth Cliff Railway lower station
